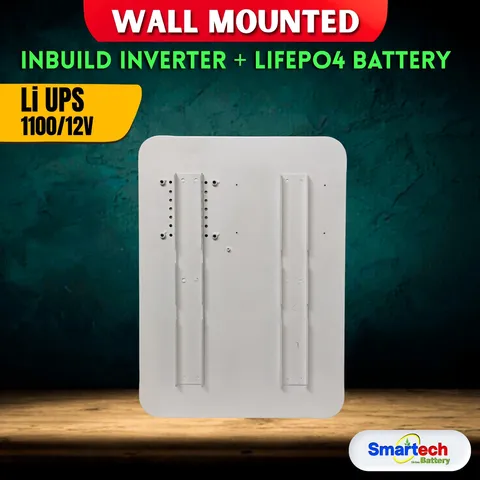

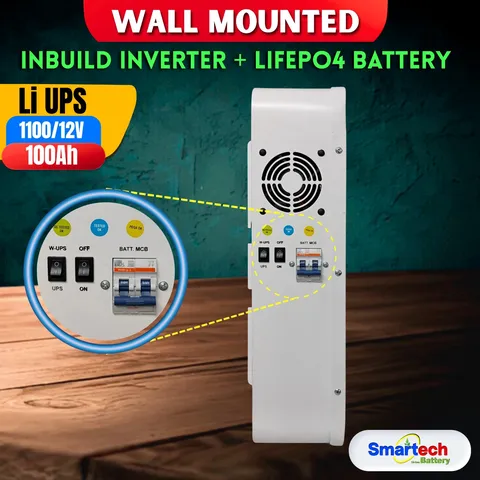

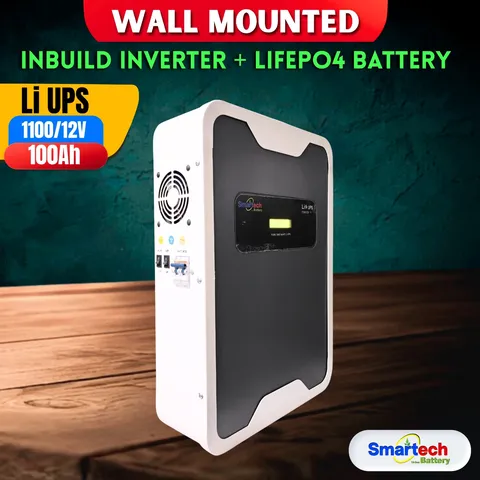

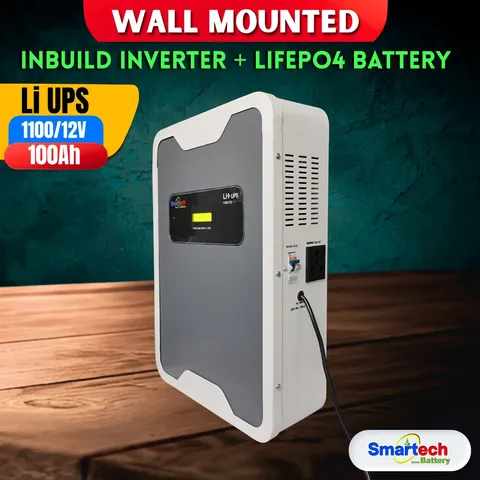

Wall-Mounted Li UPS
Li UPS 1100/12V Wall-Mounted Inverter + 100Ah LiFePO4
All-in-one wall-mounted pure sine wave inverter with built-in 100Ah LiFePO4 battery - just plug & play.
- Inverter + battery in one
- Pure sine wave output
- 8-10 year battery life
- Plug & play, wall mounted
Specifications
Brochure (PDF)| Model | UPS 1100/12V |
|---|---|
| Rating | 1000VA / 12V |
| Output | 800 W pure sine wave |
| Battery | LiFePO4 100Ah (160Ah optional) |
| Charging current | 25 A |
| Battery charging time | About 5 hours |
| Backup @ 200 W | 6:30 hrs (100Ah) · 10:00 hrs (160Ah) |
| Backup @ 400 W | 3:15 hrs (100Ah) · 5:00 hrs (160Ah) |
| Depth of discharge | 80% |
| Cycle life | 3000 cycles |
| Working temperature | -10°C to 60°C |
| Service life | 10 years |
| Dimensions (H x W x D) | 540 x 400 x 155 mm |
| Installation | Wall mounted |
Description

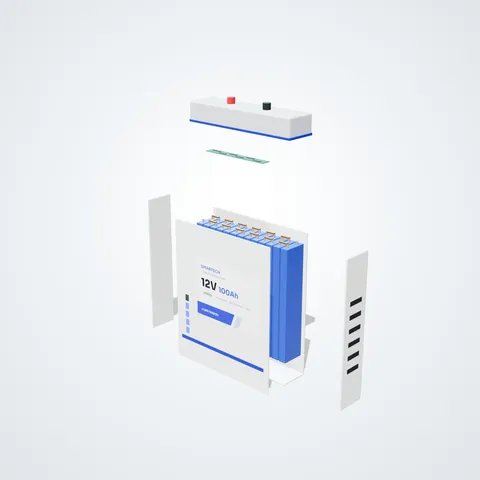

Li UPS 1100/12V combines a smart pure sine wave inverter and a LiFePO4 battery in one wall-mounted unit. No separate battery, no acid, no maintenance - and a battery that lasts 8-10 years instead of 3-4 years for lead-acid.
- Pure sine wave AC output - safe for sensitive appliances
- BMS real-time monitoring: over-charge, over-current, over-temperature, deep-discharge and short-circuit protection
- Fast charging (25 A) - full charge in about 5 hours
- Also available with a 160Ah battery
