E-Rickshaw Batteries

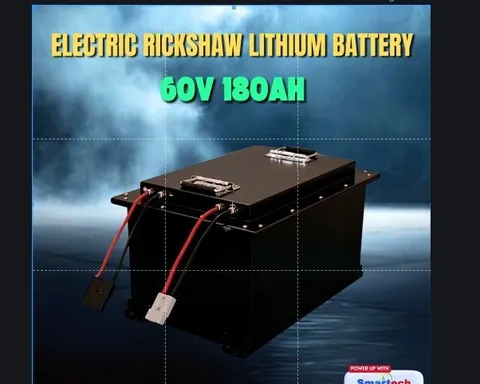

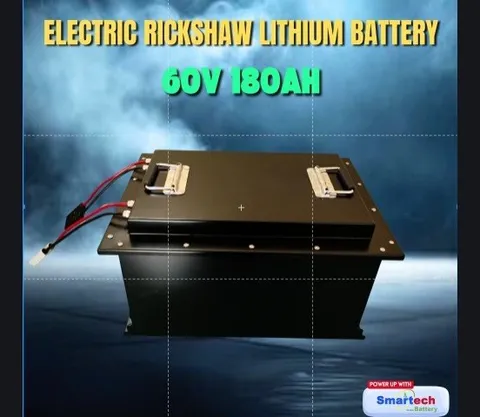

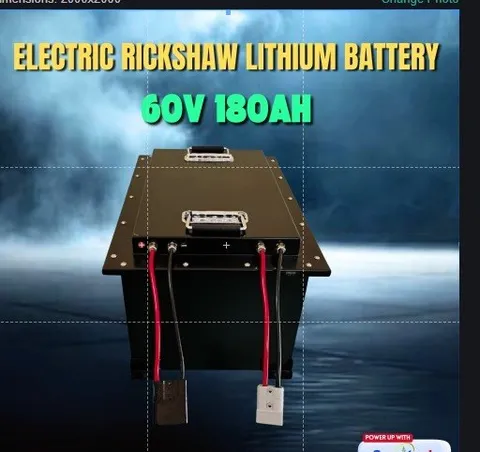

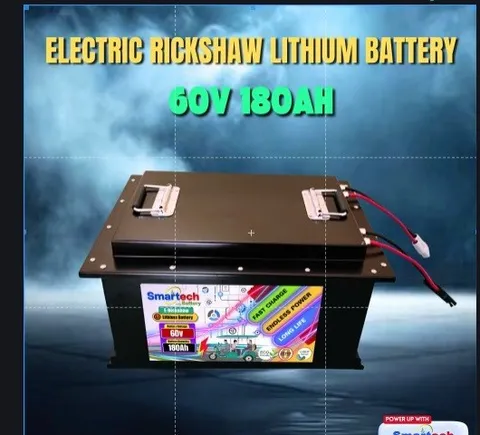

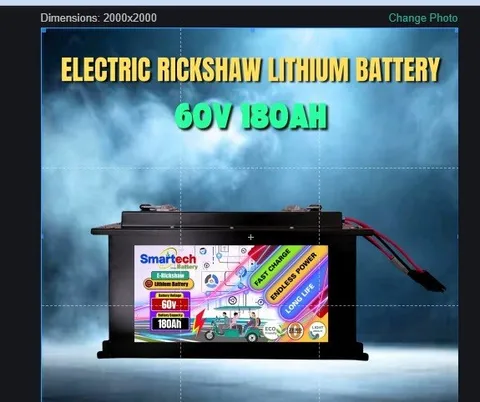

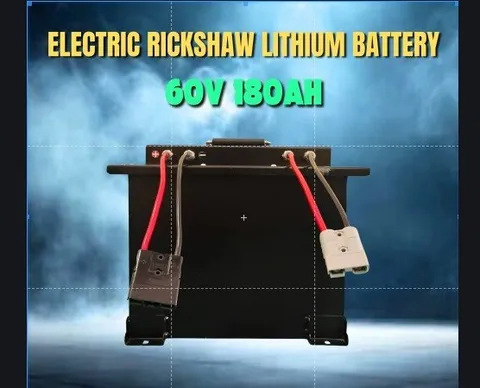

60V 180Ah Lithium E-Rickshaw Battery
60V 180Ah lithium prismatic e-rickshaw battery with smart BMS, UART / CAN / RS485 communication and 3500-cycle life.
- Built-in intelligent smart BMS
- RS485 / CAN / UART communication
- 10+ years life design
- State-of-charge display & mobile app monitoring
- Metal casing · custom dimensions
Specifications
Brochure (PDF)| Model | SB-60180 |
|---|---|
| Cell type | Lithium Prismatic |
| Nominal voltage | 60 V |
| Nominal capacity | 180 Ah |
| Rated energy | 10656 Watt |
| Charging voltage | 67.2 V |
| Discharge cut-off voltage | 45 V |
| Standard charge current | 0.2C |
| Standard discharge current | 0.5C |
| Recommended charging current | 30 A |
| Max discharge current | 100 A |
| Working temperature | Charging up to 45°C · discharging up to 65°C |
| Connector current | 75 A |
| BMS | SMART BMS |
| Communication | UART / CAN / RS485 |
| Casing | Metal Case |
| Cycle life | 3500 cycles @ 25°C |
| Weight | 48 kg (approx.) |
| Dimensions (L x W x H) | 570 x 375 x 280 mm |
Description

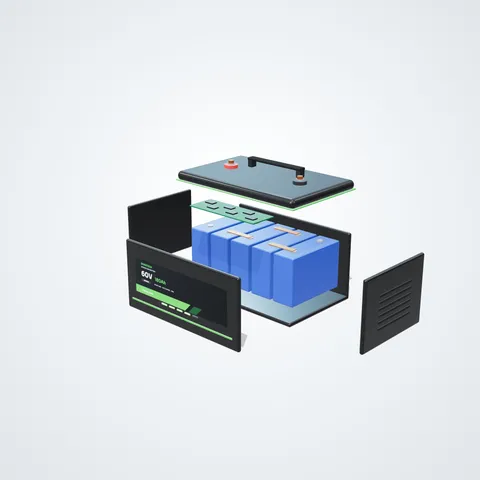

The SMARTECH 60V 180Ah lithium e-rickshaw battery is built with lithium prismatic cells and a built-in intelligent BMS that protects against over-voltage, under-voltage, over-current, short circuit and high/low temperature.
- RS485 / CAN 2.0 / CANopen communication, GPS optional
- Soft switch, cell monitoring & balancing, SoC display (optional)
- Monitoring via mobile app · 10+ years life design
- We create custom dimensions
